GFG · Repeater display for Garmin
A second screen that shows exactly what your Garmin shows. Plug it into the unit's HDMI and USB ports, mount it where you stand, and stop turning around to read the sonar.
16 inch
18 inch
22 inch
16 / 18 / 22 in
Screen sizes
HDMI + USB
Connects to the Garmin
2 years
Warranty
From Osaka
Shipping worldwide
Overview

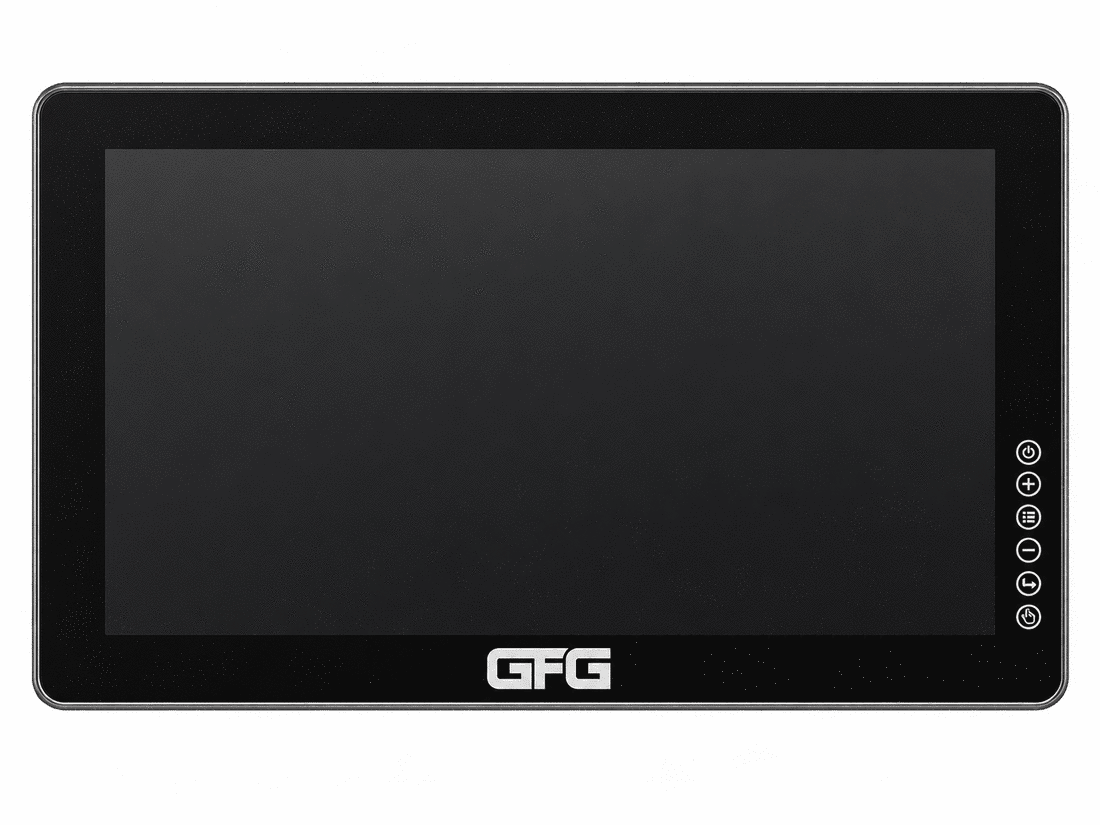

Most anglers mount the main Garmin at the console and then spend the day looking back over their shoulder. Battle Fish Pro fixes that. It is a repeater: it takes the video signal from the Garmin and shows the same chart, sonar or split page on a second, larger screen.
There is nothing to configure on the Garmin side. You run an HDMI cable and a USB cable from the ports already built into the unit, power the display, and the picture appears. Change pages on the Garmin and the repeater follows.
Sizes and prices
All three sizes share the same bracket, buttons and connections. The difference is how much screen you want in front of you.
16
inch
Screen size (W × H × D)
422 × 195.4 × 45 (mm)
Monitor weight
4.3 kg
Resolution
1920 × 1080
3000.00 $
Order 16 inch18
inch
Screen size (W × H × D)
484 × 230 × 45 (mm)
Monitor weight
5.8 kg
Resolution
1920 × 1080
3500.00 $
Order 18 inch22
inch
Screen size (W × H × D)
552 × 663 × 45 (mm)
Monitor weight
7.5 kg
Resolution
1920 × 1080
4000.00 $
Order 22 inchPrices are per unit. Shipping from Japan is quoted separately, depending on your country and the method you choose.
Why anglers fit it
01
Whatever is on the Garmin is on the repeater. No separate maps, no second sonar to set up.
02
Connects through the Garmin's own HDMI and USB inputs. No software, no firmware changes.
03
16, 18 or 22 inch. Pick the one that fits your deck and your viewing distance.
04
The GFG bracket swings on two large hand knobs. Set the angle against glare and lock it.
05

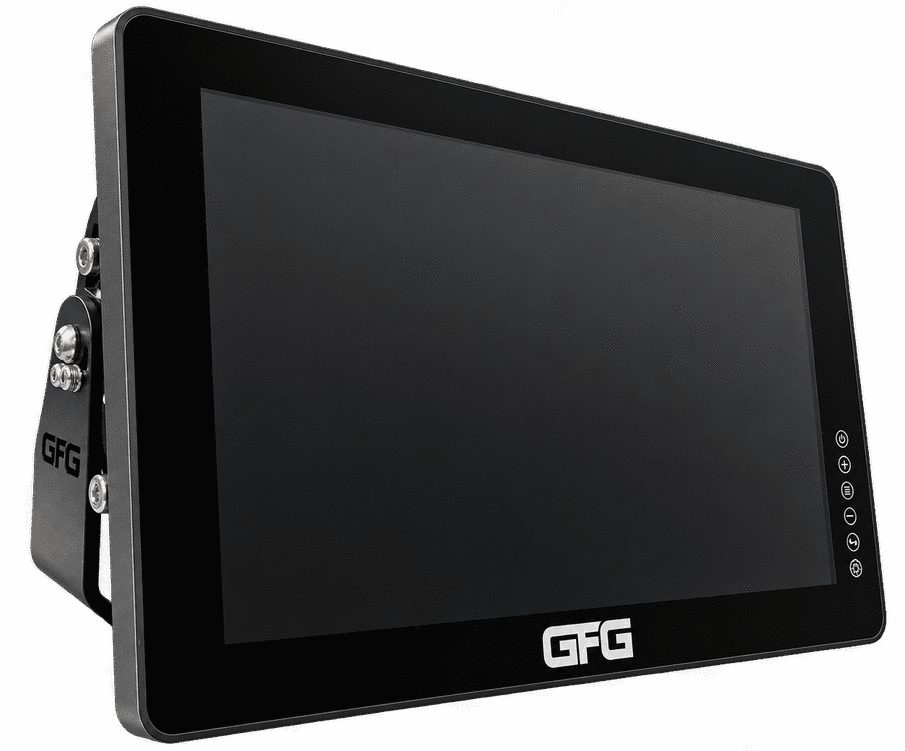

Six buttons on the right edge handle power and display settings. They work with wet hands and gloves.
06
A grey hard cover closes over the glass, so the screen stays protected on the trailer and in storage.
Built for the boat

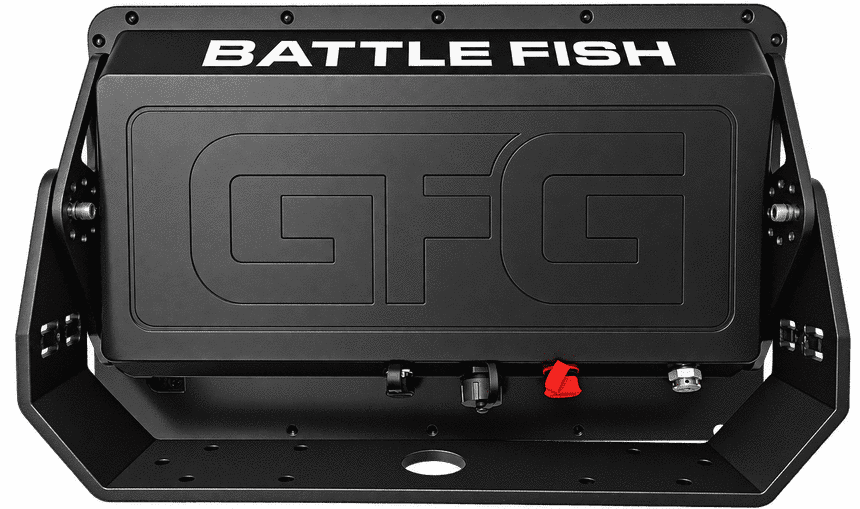

Sealed rear housing with the cable connectors along the bottom edge. The base plate is drilled for deck mounting with a pass-through hole for the cables.

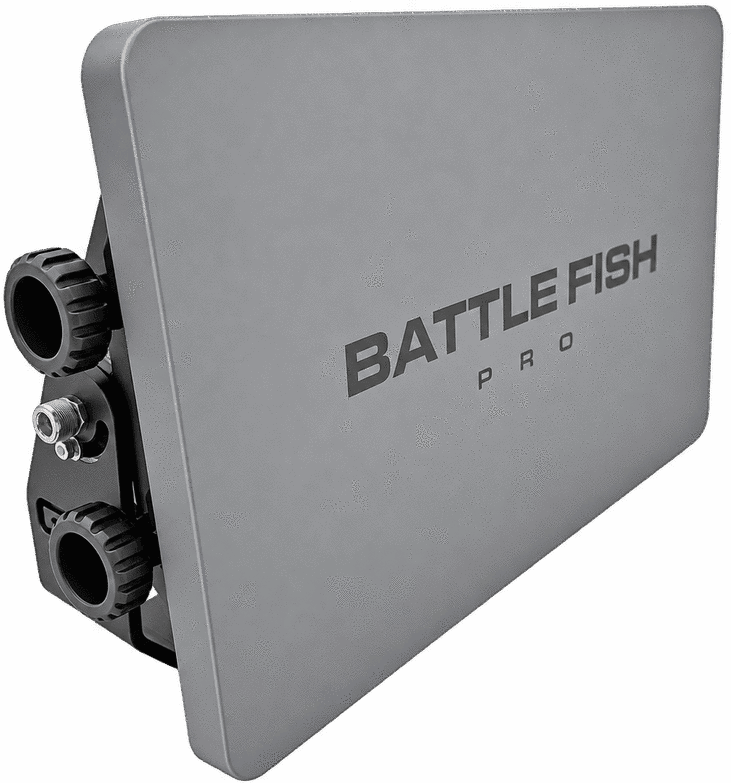

The fitted cover goes on in seconds when you leave the water. Knobs stay accessible, so you can fold the screen down with the cover in place.
Specifications
Need a detail that is not listed here, like exact dimensions for your console? Ask us and we will send the drawing for your size.
Product
Battle Fish Pro repeater display
Screen sizes
16 inch, 18 inch, 22 inch
Touchscreen
Responsive and accurate touchscreen
Brightness
1500 nits
Waterproof
IP67
Inputs
HDMI and USB from the Garmin unit
Controls
Six buttons on the front bezel
Mount
GFG tilting bracket with two locking knobs
Protection
Fitted hard cover for the screen
Warranty
2 years from the date of purchase
Ships from
Osaka, Japan
Compatible Garmin models
Battle Fish Pro connects to the standard USB and HDMI ports on these Garmin models. Both XSV and non-XSV versions are supported.
HDMI
Carries the picture from the Garmin
USB
Standard USB input on the unit
Garmin 8700
Garmin 1643
XSV or non-XSV
Garmin 8610 / 8410
XSV or non-XSV
Garmin 8612 / 8412
XSV or non-XSV
Garmin 8616 / 8416
XSV or non-XSV
Garmin 1243
XSV or non-XSV
